{ Setarea unitatilor de desenare}
Command: Units
Report formats: (Examples)
1. Scientific 1.55E+01
2. Decimal 15.50
3. Engineering 1'-3.50"
4. Architectural 1'-3 1/2"
5. Fractional 15 1/2
Enter choice, 1 to 5 <2>:
Number of digits to right of decimal point (0 to 8) <4>: 2
Systems of angle measure: (Examples)
1. Decimal degrees 45.0000
2. Degrees/minutes/seconds 45d0'0"
3. Grads 50.0000g
4. Radians 0.7854r
5. Surveyor's units N 45d0'0" E
Enter choice, 1 to 5 <1>:
Number of fractional places for display of angles (0 to 8) <0>:
Direction for angle 0:
East 3 o'clock = 0
North 12 o'clock = 90
West 9 o'clock = 180
South 6 o'clock = 270
Enter direction for angle 0 <0>:
Do you want angles measured clockwise? <N>
{ Setarea ariei de desenare A4 }
Command: Limits
ON/OFF/<Lower left corner> <0.00,0.00>:
Upper right corner <420.00,297.00>: 210,297
Command: Zoom
All/Center/Dynamic/Extents/Previous/Scale(X/XP)/Window/<Realtime>: a

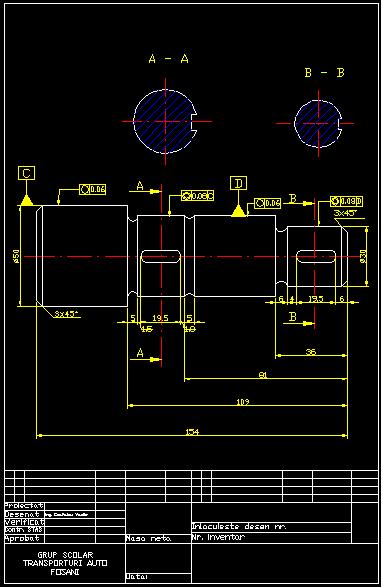

{ Comenzile pentru realizarea piesei }

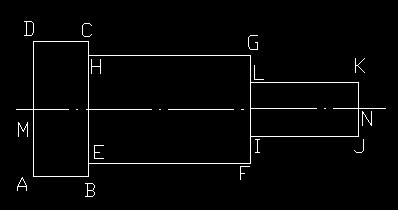

Command: Line
From point: 40,25 (A)
To point: 60,25 (B)
To point: @0,50 (C)
To point: @-20,0 (D)
To point: end of (AB) (se indica cu mouse-ul punctul A)
To point: *Cancel*
{ Schimbarea tipului de linie si alegerea linie de tip linie-punct }
Command: Linetype
Command: Line
From point: mid of
To point: (N)
To point: *Cancel*
{ Modificare dimensiune segment de dreapta }
** STRETCH **
<Stretch to point>/Base point/Copy/Undo/eXit:
Command: *Cancel*
Command: Line
From point: 60,30 (E)
To point: @60,0 (F)
To point: @0,40 (G)
To point: per to (BC) (rezulta punctul H)
To point: *Cancel*
Command: Line
From point: 120,40 (I)
To point: @40,0 (J)
To point: @0,20 (K)
To point: per to (FG) (rezulta punctul L)
To point: *Cancel*
