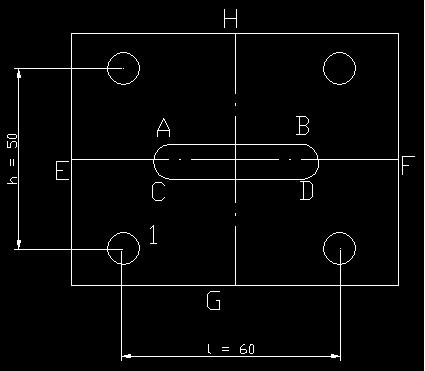

Sa se realizeze desenul urmator ( se utilizeaza comanda ARRAY)

Command: Array
Select objects: 1 found (1)
Select objects:
Rectangular or Polar array (<R>/P): R
Number of rows (---) <1>: 2
Number of columns (|||) <1>: 2
Unit cell or distance between rows (---): 50 (se observa ca distanta l si h se masoara din centrul cercului)
Distance between columns (|||): 60

Command: Rectangle
Chamfer/Elevation/Fillet/Thickness/Width/<First corner>:
Other corner:

Command: Line
From point: mid of (pct. E)
To point: mid of (pct. F)
To point: *Cancel*

Command: Line
From point: mid of (pct. G)
To point: mid of (pct. H)
To point: *Cancel*

Command: Line
From point: A
To point: B
To point: *Cancel*

Command: Line
From point: C
To point: D
To point: *Cancel*

Command: Arc
Center/<Start point>: end of (AB)
Center/End/<Second point>: end of (CD)
End point: ( un pct. langa C))

Command: Arc
Center/<Start point>: end of (AB)
Center/End/<Second point>: end of (CD)
End point: (un punct langa D)
Command: *Cancel*
